▌Introduction

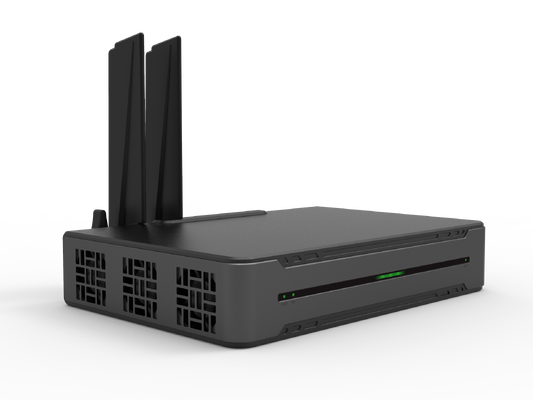

The Radio Signal Detector RS100-D is a signal/spectrum analysis and visualization products which designed for 7*24h real-time and continuous detection within 9kHz ~ 24 GHz frequency range. It works persistently to scan the radio signals within monitoring range in working area for abnormal signal real-time discovery, intelligent identification, automatic alarm, accurate signal direction finding/positioning.

The device is dedicated to long-term intelligent monitoring and automatic early warning of regional electromagnetic security. It is an effective equipment to deal with eavesdropping, electromagnetic attack, electromagnetic leak and can be widely used in anti-reconnaissance, intelligence protection, facility protection scenarios,  such as government sectors, military base, research institute, embassy, president house, etc.

It is an essential product for the next generation of occasional inspection and long-term inspection;

▌Features

l 7*24h persistent radio signal monitoring

l Restore audio and video with AM/FM modulation.

l Modulation system identification.

l Cellular 4G abnormal traffic analysis

l WI-FI AP&STA abnormal traffic analysis, and support positioning of a single WIFI device

l BT abnormal traffic analysis

l Visual signal list display, spectrum display and waterfall diagram display,  more easier for operation

l Professional background comparison function

l Eavesdropping signal identification and alarm with built-in eavesdropping signal library.

l Detect intercom,DJI UAV and satellite signals.

l Supporting networking deployment for large-scale deployment.

l Local storage for long-term detection.

l Abnormal signal location and sweep

▌Direction finding & Positioning

l Single station direction finding/positioning

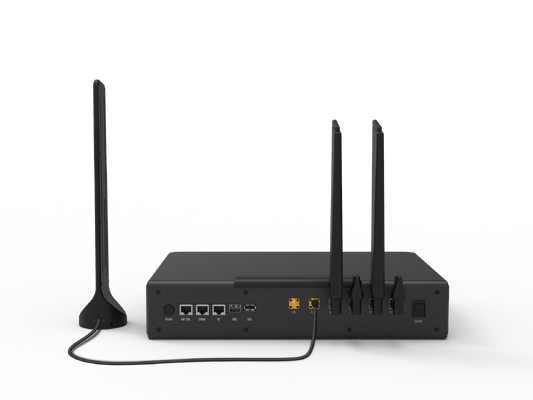

Direction Finding: The main device is connected to the antenna array, with direction finding accuracy of 3° (RMS)

Positioning: RS100D can work together with hand-held positioning equipment RSHunter to realize the approximate positioning quickly and easily

l TDOA joint positioning

Three devices can realize TDOA joint positioning. The device provides raw data (IQ data) and the background system realizes joint positioning through positioning algorithm
